PIPING SYSTEM

RTP (Reinforced Thermoplastic Pipe) Special Pipe

The structure of RTP consists of a polyethylene carrier pipe that is wrapped with various reinforcing fibers or resins, followed by an outer coating. The material inserted into the intermediate layer varies depending on each manufacturer's proprietary design, but commonly used materials include engineering plastics, fibers, and steel-based components.

  • 01
    The inner layer is made of PE (polyethylene), which provides excellent chemical resistance, making the pipe suitable for transporting various media such as crude oil, gas, and water. (e.g., brine, CO₂, H₂S, etc.).
  • 02
    HDPE (high-density polyethylene) is highly resistant to abrasion, friction, and impact, and also shows strong resistance to chemicals and ultraviolet radiation, making it an ideal material for outdoor applications.
  • 03

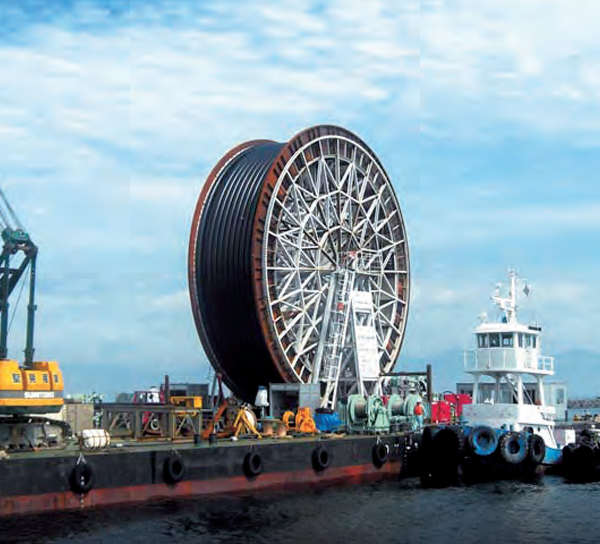

    PE is a flexible material, allowing RTP pipes to be manufactured and transported in coil form. This significantly reduces the number of joints required during long-distance pipeline installation, shortening construction time, lowering costs, and providing excellent pipeline stability.
  • 04
    The smooth inner surface prevents any scale buildup. Therefore, it is well suited for use in coastal areas or seawater intake piping systems.

Types of RTP

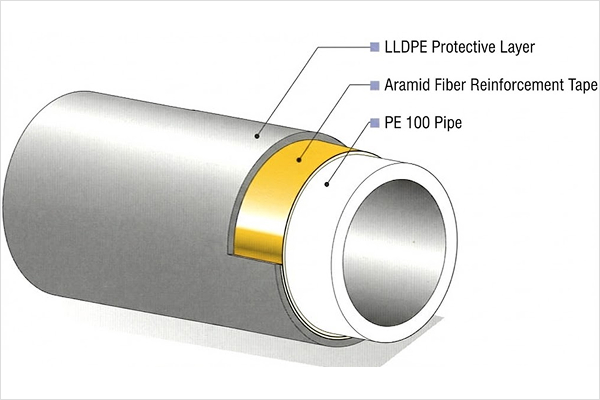

WEETA-K: Linear Low-Density Polyethylene Protective Layer, Aramid Fiber Reinforcement Tape, PE 100 Carrier Pipe

WEETA-K

WEETA-K is an aramid-reinforced RTP designed for applications requiring high pressure, such as fire-fighting pipelines, suspension piping systems, and bridge-mounted installations.

Operating conditions
Working pressure
WEETA-K-20 [2.0 Mpa (20.4 kgf/㎡)]
WEETA-K-25 [2.0 Mpa (25.5 kgf/㎡)]
Operating temperature
0~40℃
Pipe diameter
50~315 mm

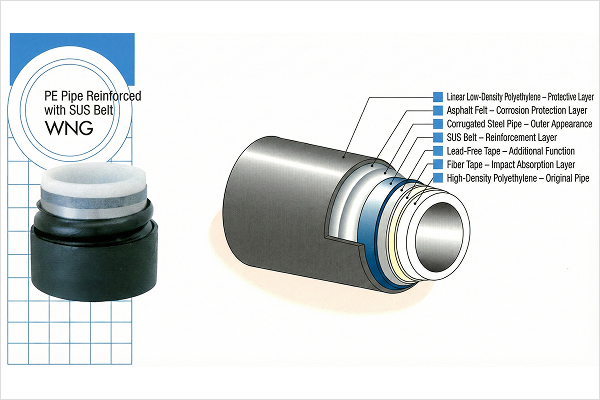

WNG - PE Pipe Reinforced with SUS Belt: Linear Low-Density Polyethylene, Asphalt Felt, Corrugated Steel Plate, SUS Belt, Flame-Retardant Tape, Fiber Tape, High-Density Polyethylene Carrier Pipe

WNG

WNG is a PE pipe reinforced with SUS belts and is used for potable water supply pipelines in island regions, seawater intake and discharge pipelines, and subsea cable protection conduits.

Operating conditions
Working pressure
2.5 Mpa (25.5 kgf/㎠)
Operating temperature
40℃
Pipe diameter
50~315 mm

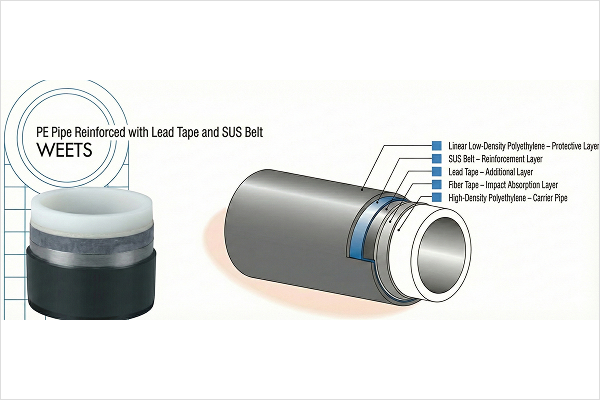

WEETS - PE Pipe Reinforced with Lead Tape and SUS Belt: Linear Low-Density Polyethylene, SUS Belt, Lead Tape, Fiber Tape, High-Density Polyethylene Carrier Pipe

WEETS

WEETS is a PE pipe reinforced with lead tape and SUS belts and is used as a subsea cable protection conduit and a potable water supply pipe for island regions.

Operating conditions
Working pressure
2.5 Mpa (20.4 kgf/㎠)
Operating temperature
40℃
Pipe diameter
50~400 mm
