PIPING SYSTEM

Double-Layer Insulated Pipe

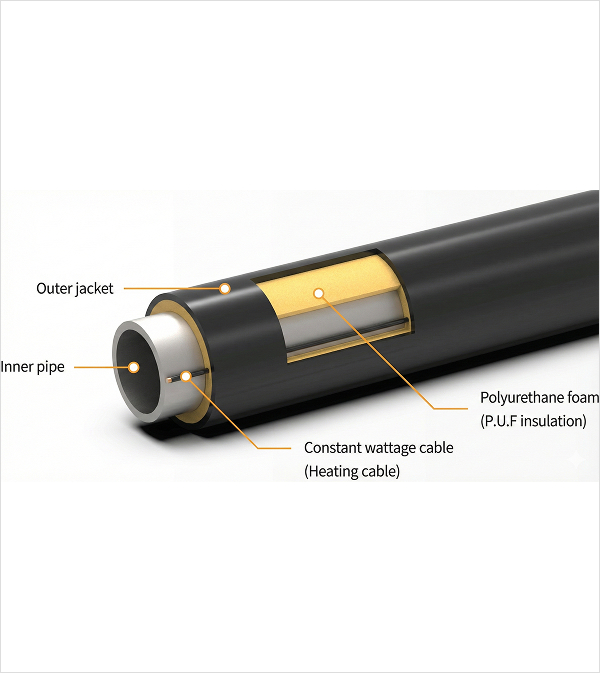

The Double-Layer Insulated Pipe is a high-performance piping system designed to prevent freezing of the fluid inside the carrier pipe. It features an integrated layer of high-insulation polyurethane foam processed between the inner pipe and the outer protective pipe, providing excellent thermal insulation performance.

  • 01
    It provides outstanding thermal insulation with polyurethane.
  • 02
    Straight pipes and various fittings are pre-insulated and manufactured at the factory, making on-site installation simple and convenient.
  • 03
    Regular maintenance, repair, or replacement of insulation materials is not required - since quality is maintained during installation.
  • 04
    Ensuring no impact from chemical corrosion or similar factors since the outer casing is made of corrosion-resistant HDPE.
  • 05
    It saves energy and reduces overall maintenance and operating costs by minimizing heat loss.

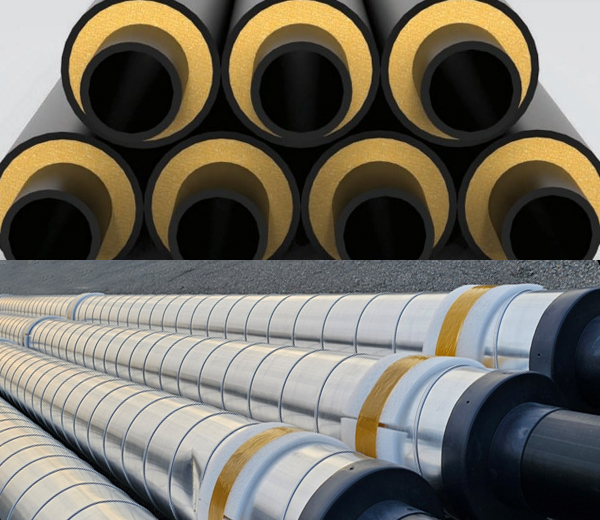

Materials of Thermally Insulated Double-Layer Pipe

  • Outer casing: HDPE (Polyethylene), AL Spiral
  • Insulation material: Polyurethane Foam, Rock Wool
  • Carrier pipe: HDPE pipe (KS M 3408-2) / Steel pipe (KS D 3507) / STS pipe (KS D 3567) / All other types of piping applicable

PE Inner Pipe Insulated Pipe Specification (KS M 3408-2)

Size Main(inner) Pipe Outer Casing Pipe Insulation Thickness Length
Outer Diameter Thickness Inner Diameter Outer Diameter Thickness Inner Diameter
20x90 20 2 16 90 2.5 85 65 6
25x90 25 2.3 20.4 90 2.5 85 60 6
32x90 32 3 26 90 3 104 72 6
40x110 40 3.7 32.6 110 3 104 64 6
50x110 50 4.6 40.8 110 3.2 118.6 68.6 6
63x125 63 5.8 51.4 125 3.2 133.6 70.6 6
75x140 75 6.8 61.4 140 3.2 133.6 58.6 6
90x160 90 8.2 73.6 160 3.2 153.6 63.6 6
110x200 110 10 90 200 3.5 193 83 6
160x250 160 14.6 130.8 250 4 242 82 6
225x315 225 20.5 184 315 5.6 303.8 78.8 6
280x400 280 25.4 229.2 400 6.3 387.4 107.4 6
315x450 315 28.6 257.8 450 7.8 434.4 119.4 6
